monomech

Single-camera biomechanics that stays inspectable from the first video frame to OpenSim inverse dynamics.

Python 3.10-3.12 Video to TRC External loads OpenSim IK and ID Fast viewer and GLB animation

monomech is built for researchers, students, and developers who want a clear path from raw motion data to reproducible biomechanical files. It keeps each stage separate enough to inspect, but connected enough to run a full pipeline once the inputs look right.

Start With Your Input

• I have a video

  Estimate 2D pose, lift to world/global 3D, export CSV/TRC, then continue into OpenSim when the marker data checks out.

  Video workflow

• I have a TRC

  Load marker data, summarize missing values, fill gaps, smooth trajectories, and export a cleaned TRC.

  Marker workflow

• I need external loads

  Build OpenSim loads from force plates, arrays, constant loads, carried objects, or estimated ground reaction forces.

  Forces guide

• I need IK and ID

  Scale a model, run inverse kinematics, inspect marker errors, add external loads, and run inverse dynamics.

  OpenSim guide

• I need a viewer

  Review IK, ID, forces, and body motion quickly, then export a GLB when you need full meshes.

  Animation export

End-To-End Map

flowchart LR
  A["Video or TRC"] --> B["Pose / marker data"]
  B --> C["CSV and TRC exports"]
  C --> D["OpenSim scale"]
  D --> E["Inverse kinematics"]
  F["Measured or estimated external loads"] --> G["ExternalLoads.xml + MOT"]
  E --> H["Inverse dynamics"]
  G --> H
  H --> I["STO tables for analysis"]
  E --> J["Fast viewer or animated GLB"]
  H --> J

What The Stages Look Like

These are direct outputs from the package plotting helpers, estimated-load tables, and exported Three.js viewer.

• 2D pose overlay



  Check the detected body landmarks directly on the source frame.

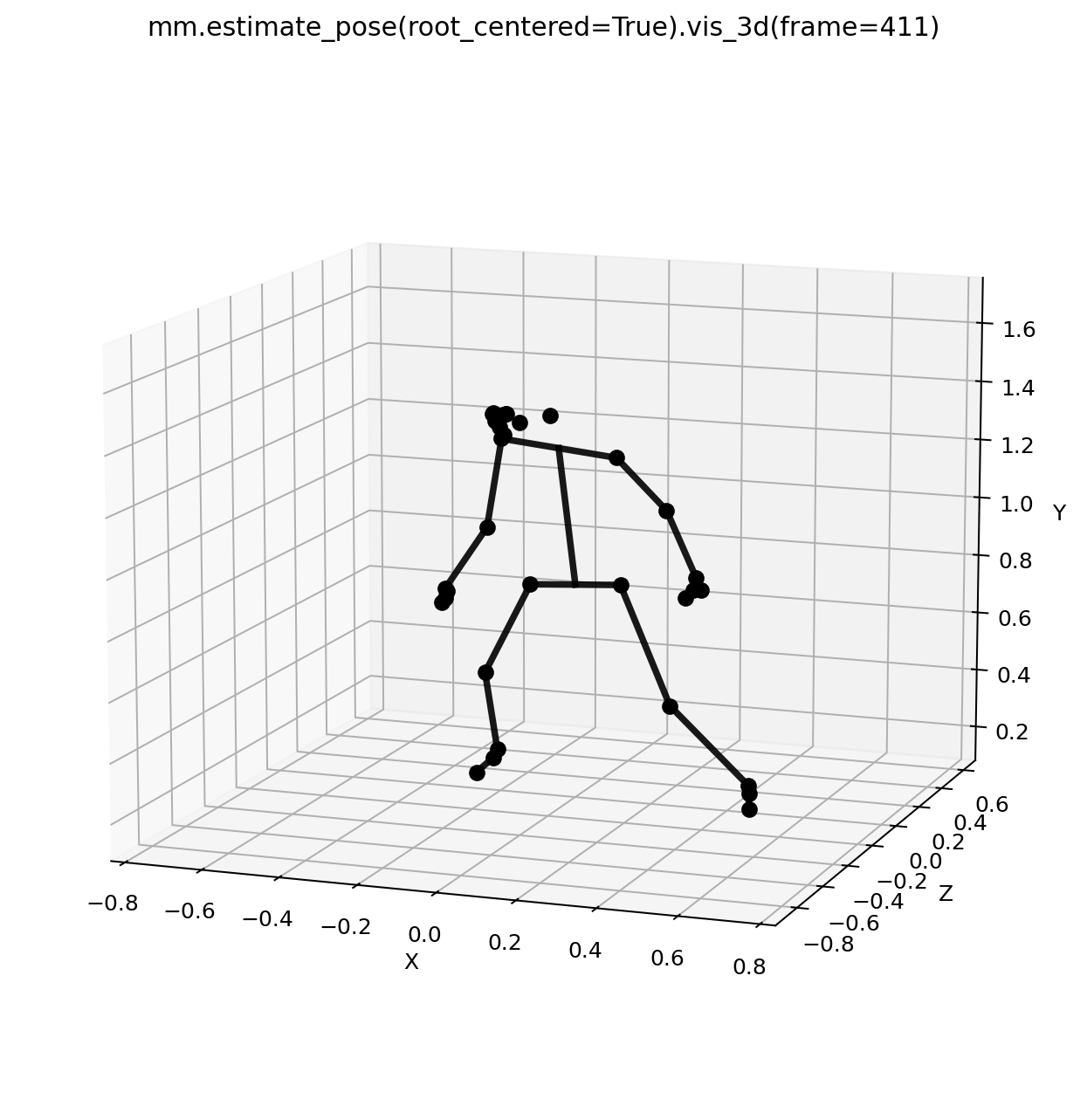

• Root-centered 3D



  Inspect body shape and relative motion before camera placement.

• PnP global pose



  Review a Y-up, floor-aligned 3D pose before exporting to OpenSim.

• Key IK angles



  Review the hip, knee, and ankle angles that usually get checked first.

• Estimated forces



  Inspect vertical support and center-of-pressure placement.

• Key ID kinetics



  Check the main hip, knee, and ankle moment traces.

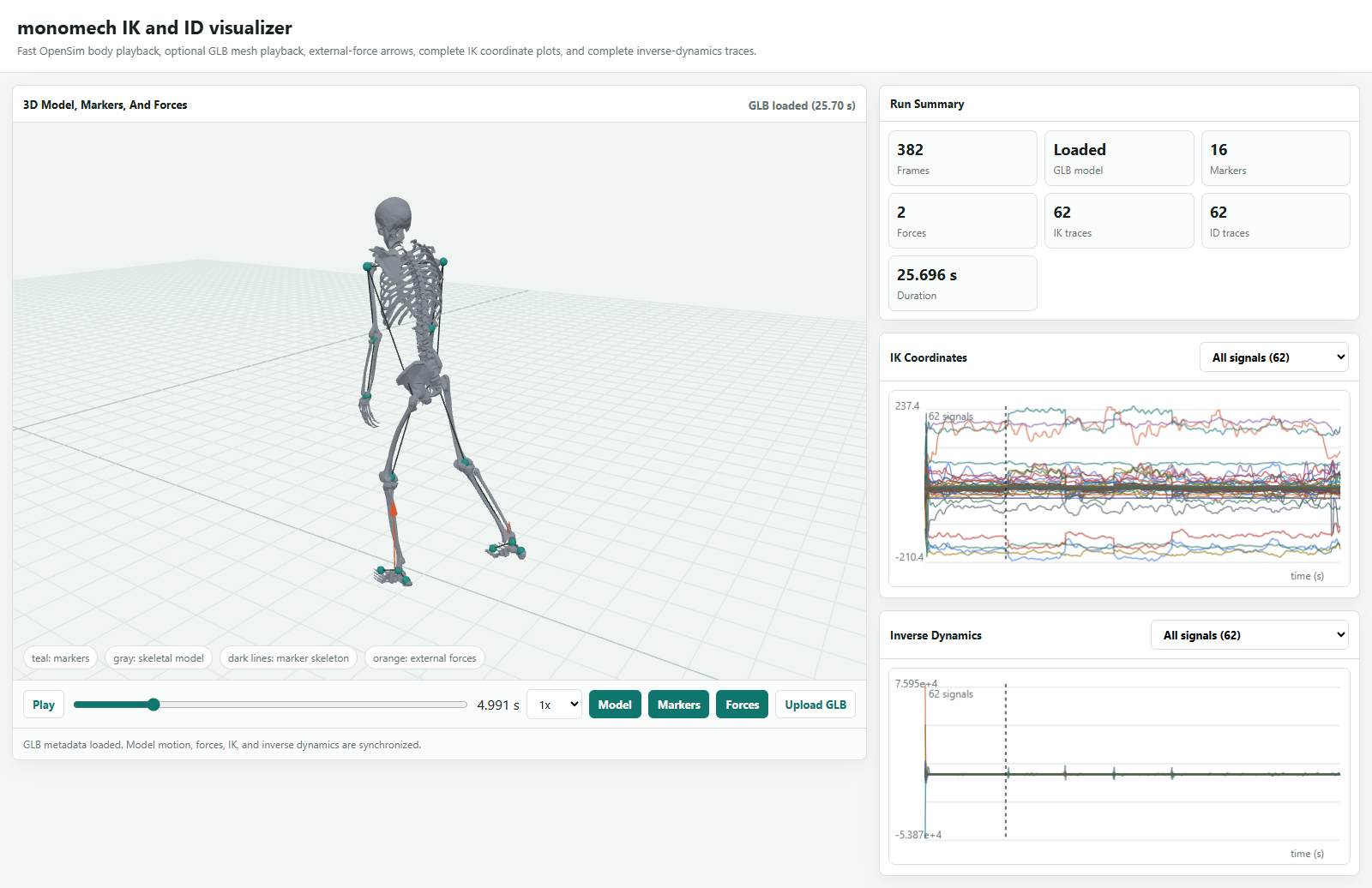

• GLB skeletal viewer



  Open the exported skeletal mesh animation in the same viewer used on the docs site.

See the full visual pipeline tour

Install

Base import and TRC toolsVideo poseOpenSimAnimationEverything

python -m pip install monomech

python -m pip install "monomech[pose]"

python -m pip install "monomech[opensim]"

python -m pip install "monomech[animation]"

python -m pip install "monomech[all]"

Start light

The base install is intentionally lightweight. Optional video and OpenSim packages are imported only when their workflows need them.

First Video Export

from pathlib import Path
import monomech as mm

video_path = Path("data/subject01.mp4")
output_dir = Path("outputs/subject01")
output_dir.mkdir(parents=True, exist_ok=True)

pose = mm.estimate_pose(video_path, root_centered=False, floored=True)
pose = mm.gap_fill(mm.smooth(pose))

pose.vis_2d(frame=50)
pose.vis_3d(frame=50)

pose.to_csv(output_dir / "subject01_pose.csv")
trc_path = pose.to_trc(output_dir / "subject01.trc")
print(trc_path)

floored=True uses contact-aware floor alignment by default. The result metadata records the support frames used by the estimator:

print(pose.metadata["floor_method"])
print(pose.metadata["floor_contact_frames"])

First OpenSim Run

scale = mm.run_scaling(
    pose,
    model="pose",
    output_dir=output_dir / "scale",
)

ik = mm.run_ik(scale, output_dir=output_dir / "ik")

estimated_loads = mm.estimate_grf(pose, body_mass_kg=75.0)

id_result = mm.run_id(
    ik=ik,
    external_forces=estimated_loads,
    output_dir=output_dir / "id",
)

viewer = mm.animate(
    ik=ik,
    id=id_result,
    external_loads_path=id_result.metadata["external_loads_mot_path"],
    output_dir=output_dir / "visualizer",
    render="fast",
)
viewer.show()

Built-In Preflight Checks

OpenSim tools can fail on NaNs, infinite values, mismatched timing, or missing files. monomech preflights the common problems before running the tools:

Stage	Default behavior	Where to inspect
Scale	Interpolates TRC marker gaps when needed.	scale.metadata["preflight"]
IK	Interpolates TRC marker gaps and stores marker error summaries.	ik.metadata["preflight"]
ID	Interpolates IK coordinate NaNs before inverse dynamics.	id_result.metadata["coordinate_preflight"]
External loads	Resamples loads to IK time and fills non-finite force values.	id_result.metadata["external_loads_mot_path"]

Recommended Next Steps

• New users

  Follow Getting started from environment setup through exports and troubleshooting.

• Examples

  Open Example notebooks for video, marker cleanup, OpenSim setup, and video-to-ID.

• API reference

  Use API reference for function signatures, result methods, and config objects.

• External loads

  Read External loads and forces before trusting inverse dynamics results.

• Outputs

  Use Outputs and files to understand CSV, TRC, MOT, STO, XML, and model artifacts.

• Visualization

  Use the fast no-GLB visualizer for notebook review, or export a single GLB from IK and ID outputs with OpenSim animation export.
