Outputs and Files

monomech result objects are designed to be inspectable in notebooks and useful in downstream tools.

Common Result Methods

Most pose and marker results provide:

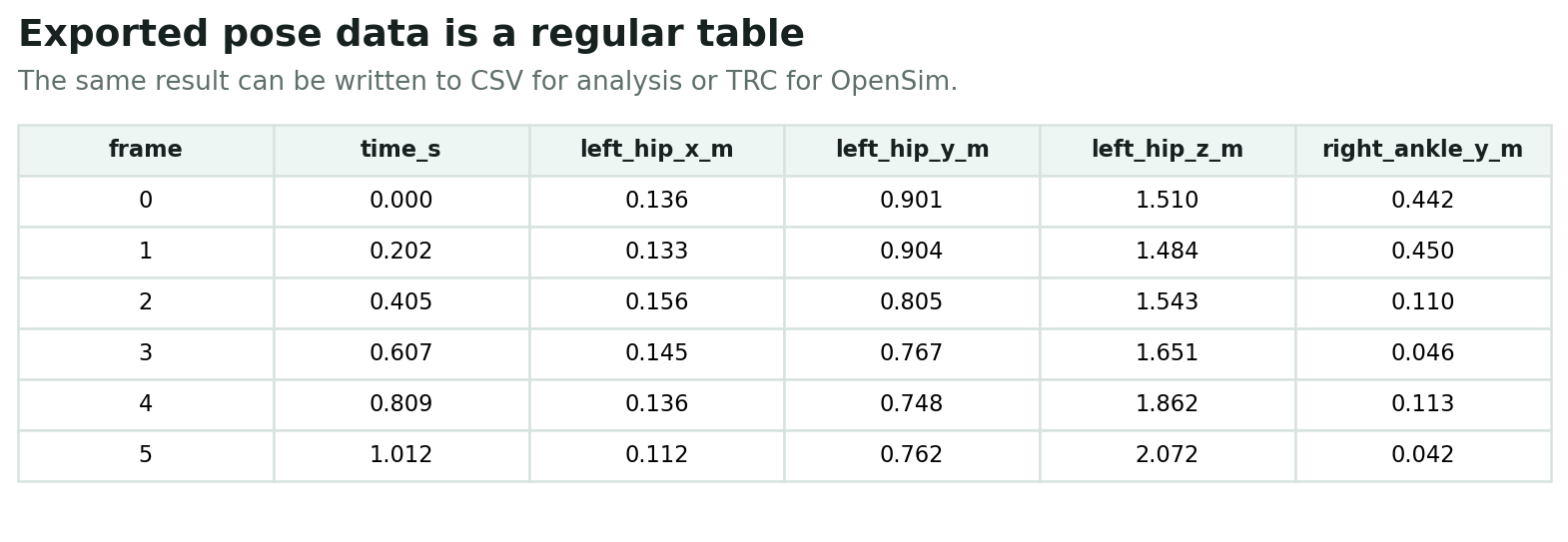

• to_wide_df() for wide-form analysis tables
• to_long_df() for long-form analysis tables
• to_csv(path) for CSV export
• to_trc(path, model_path=...) where marker/TRC export is supported
• summary() for quick quality checks
• vis_2d(frame=...) and vis_3d(frame=...) for pose or marker previews
• .smooth(...) and .gap_fill(...) on compatible results

Video Pipeline Outputs

pose = mm.estimate_pose("subject01.mp4")
pose = mm.gap_fill(mm.smooth(pose))

pose.to_csv("outputs/subject01/subject01_pose.csv")
pose.to_trc("outputs/subject01/subject01.trc", model_path=mm.get_builtin_osim_model("pose"))

Typical files:

outputs/subject01/
  subject01_pose2d.csv
  subject01_pose3d_world.csv
  subject01_pose3d_global.csv
  subject01.trc

Marker Pipeline Outputs

markers = mm.gap_fill("walk.trc", max_gap_frames=20)
markers = mm.smooth(markers, cutoff_hz=6.0)
markers.to_trc("outputs/walk_clean.trc")

Typical files:

outputs/
  walk_clean.trc

OpenSim Outputs

Scale, IK, and ID methods write OpenSim setup files and result files into stage-specific directories by default:

outputs/
  subject01/
    scale/
      *_scale_setup.xml
      *_scaled.osim
    ik/
      *_ik_setup.xml
      *_ik.mot
      _ik_marker_errors.sto
    id/
      *_id_setup.xml
      *_id.sto
      *_ExternalLoads.xml

Exact names depend on the source trial and OpenSim stage configuration.

The OpenSim tables are ordinary time series. IK produces coordinate trajectories, external-load files contain force and point signals, and ID produces force and moment traces.

Recommended Layout

Use one output directory per subject or trial:

outputs/
  subject01_walk/
    pose/
    scale/
    ik/
    id/
  subject02_walk/
    pose/
    scale/
    ik/
    id/

This keeps intermediate pose data, exported TRC files, and OpenSim results together without mixing subjects.
